CODE: CT-004

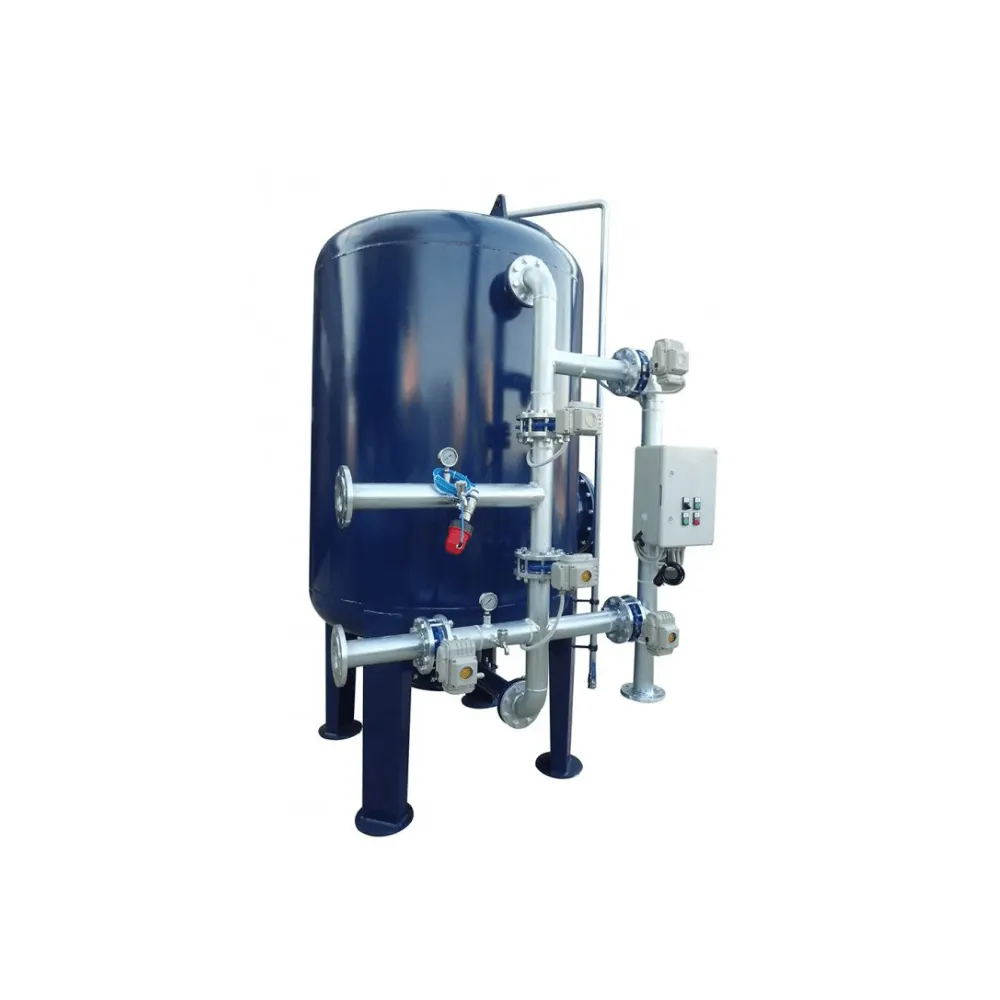

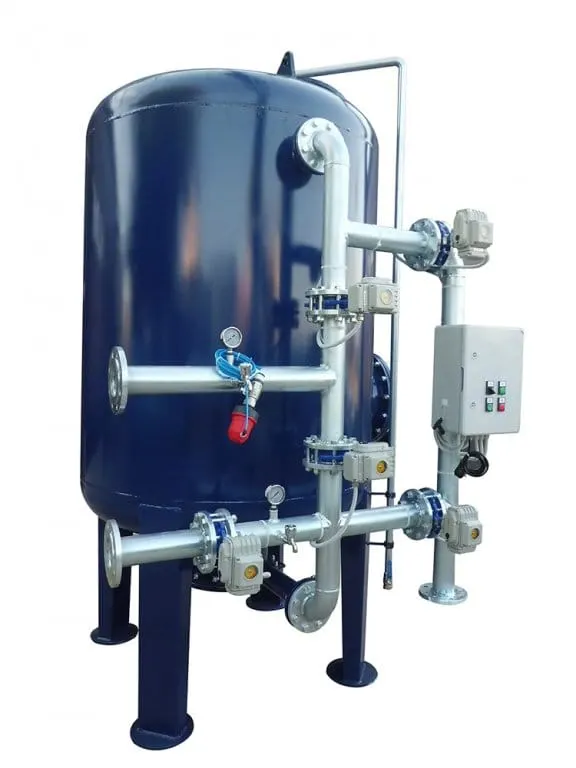

EFBI Activated carbon filters are used for the treatment of dissolved gases, residues and organic substances that give unwanted chlorine, color, taste, odor in water. Activated carbon is charcoal-like but has a very large surface area (1000-1500..
EFBI activated carbon filters are used to remove unwanted chlorine, color, taste, odor-causing dissolved gases, impurities, and organic substances from water. Activated carbon is a charcoal-like material with a very large surface area (1000–1500 m²/g).
TECHNICAL SPECIFICATIONS
Epoxy-coated carbon steel tank
Aqualine brand coconut-based activated carbon.
Maximum operating pressure 6 bar
Time-controlled backwash
Pneumatic actuator-operated butterfly valves (Optional electric actuator option)
C-1215 and C-1615 sub-collection structure octopus diffuser
C-2015 to C-2815 sub-collection structure with mirror-mounted mushroom diffusers
PVC-U piping (Optional galvanized piping option)
Sampling valves and pressure gauges at system inlets and outlets
PLC-based Siemens Logo control panel (Optional touchscreen option)
Electrical: 220V / 50 Hz / 1 pH
The customer is responsible for providing the dry instrument air required for the operation of pneumatic valves. The recommended compressor capacity is a minimum of 100 L/min @ 8 bar.
