CODE: CT-001
Sand Filters are used to remove suspended solids, turbidity and other particles in water. TECHNICAL SPECIFICATIONS Epoxy painted carbon steel tank Maximum working pressure 6 bar Time controlled..

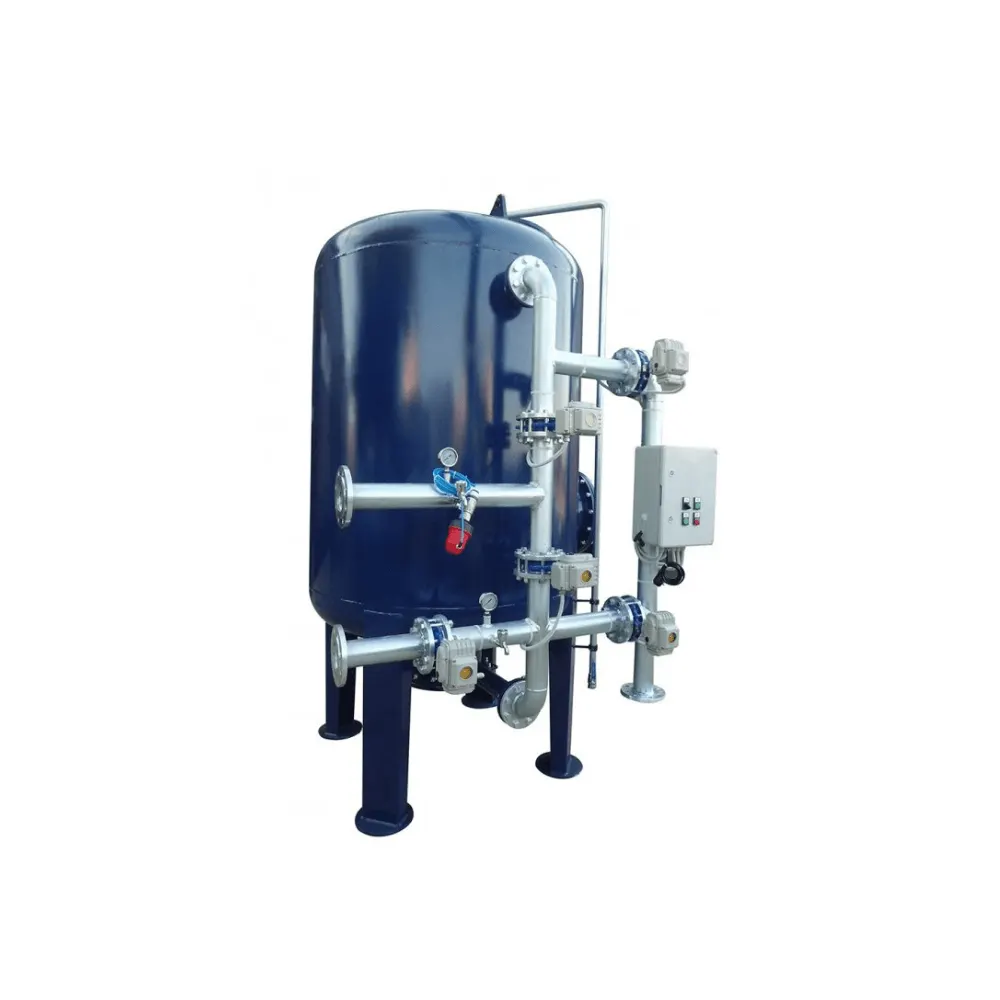

Sand filters are used to remove suspended solids, turbidity, and other particles from water.
TECHNICAL SPECIFICATIONS
Epoxy-coated carbon steel tank
Maximum operating pressure 6 bar
Time-controlled backwash
Pneumatic actuator-operated butterfly valves (optional electric actuator)
F-1215 and F-1615 lower collection structure with octopus diffuser
F-2015 to F-2815 sub-collection structure with mirror-mounted mushroom diffuser
PVC-U piping (Optional galvanized piping option)
Sampling valves and pressure gauges at system inlets and outlets
Siemens Logo PLC-based control panel (Optional touchscreen option)
Electrical: 220V / 50 Hz / 1 pH
The customer is responsible for providing the dry instrument air required for the operation of the pneumatic valves. The recommended compressor capacity is a minimum of 100 L/min @ 8 bar.
