CODE: CT-002

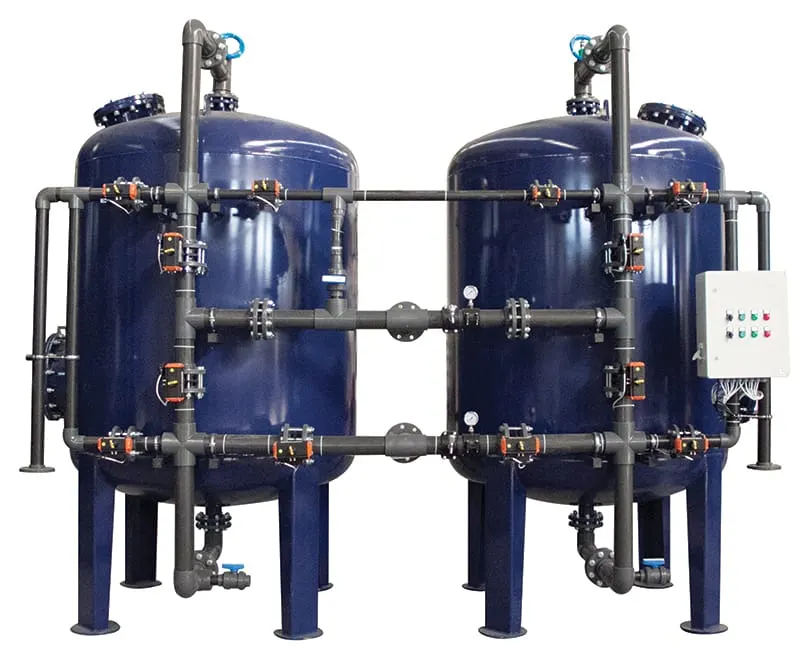

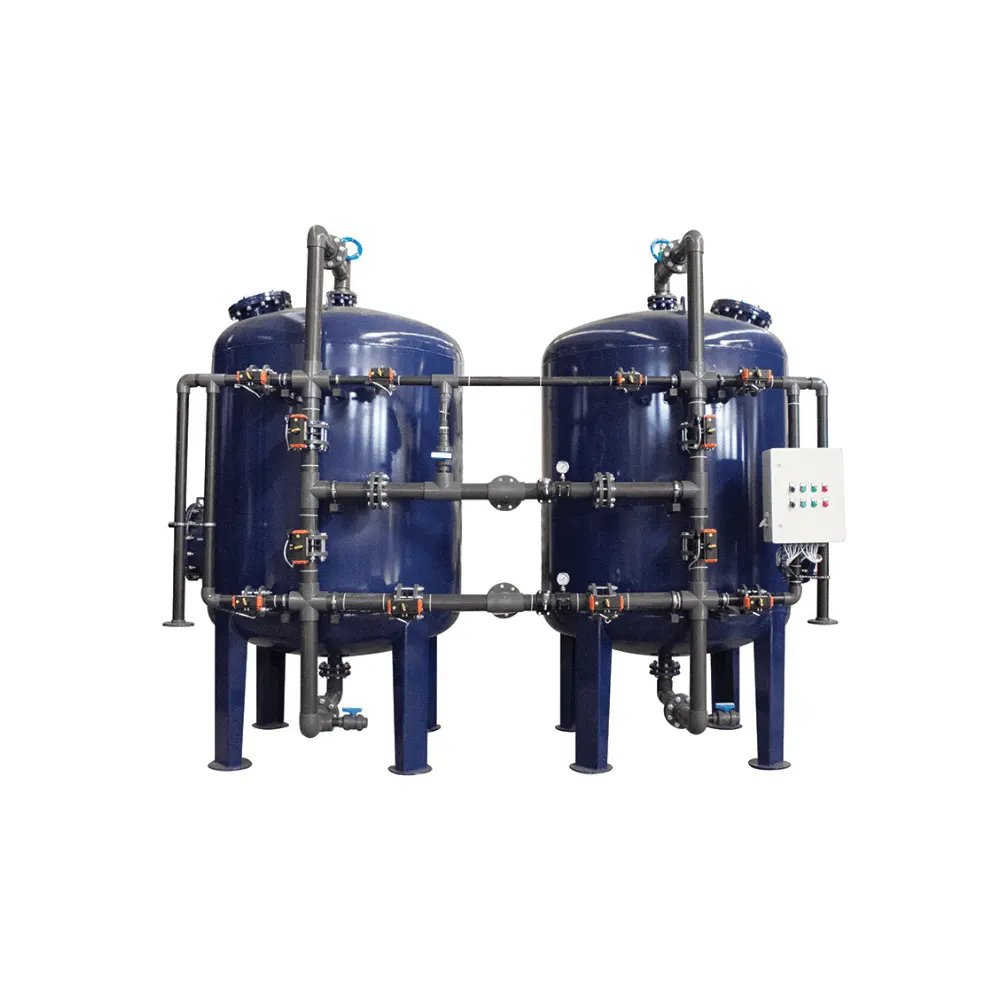

Calcium magnesium ions dissolved in water cause hardness in water. Aqualine water softening systems are systems that remove Calcium (Ca) and Magnesium (Mg) ions in water that cause hardness...
Calcium and magnesium ions present in dissolved form in water cause water hardness. Aqualine water softening systems are designed to remove calcium (Ca) and magnesium (Mg) ions from water, which are the primary causes of hardness. As a result, the softening system eliminates water hardness, softens drinking water, and improves the taste of the water.
Water softening systems automatically perform regeneration processes on the desired day and time of the week without any intervention. The resin, having reached saturation, undergoes regeneration with brine, thereby being cleansed of calcium and magnesium ions.
TECHNICAL SPECIFICATIONS
Epoxy-coated carbon steel tank
EFBI brand cationic resin
Maximum operating pressure 6 bar
Pneumatic actuated butterfly valves (Optional electric actuator option)
ST-1220 and ST-1620 sub-collection structure octopus diffuser
ST-2020 and ST-2420 sub-collection structure with mirror-mounted mushroom diffusers
PVC-U piping (Optional galvanized piping option)
Sampling valves and pressure gauges at system inlets and outlets
PLC-based Siemens Logo control panel (Optional touchscreen option)
Electrical: 220V / 50 Hz / 1 pH
A salt consumption of 150 g per 1 liter of resin has been assumed.
A resin capacity of 6000 Fr/liter of resin has been assumed.
The customer is responsible for providing the dry instrument air required for the operation of pneumatic valves. The recommended compressor capacity is a minimum of 100 L/min @ 8 bar.
|
