CODE: DSP-001
Features : Digital, Level Controlled, pH & ORP, Volumetric Peristaltic Dosing Pump - Digital display, precise dosing with micro controller technology, time setting and user password parameters - Easy menu content and user interface..
Features:

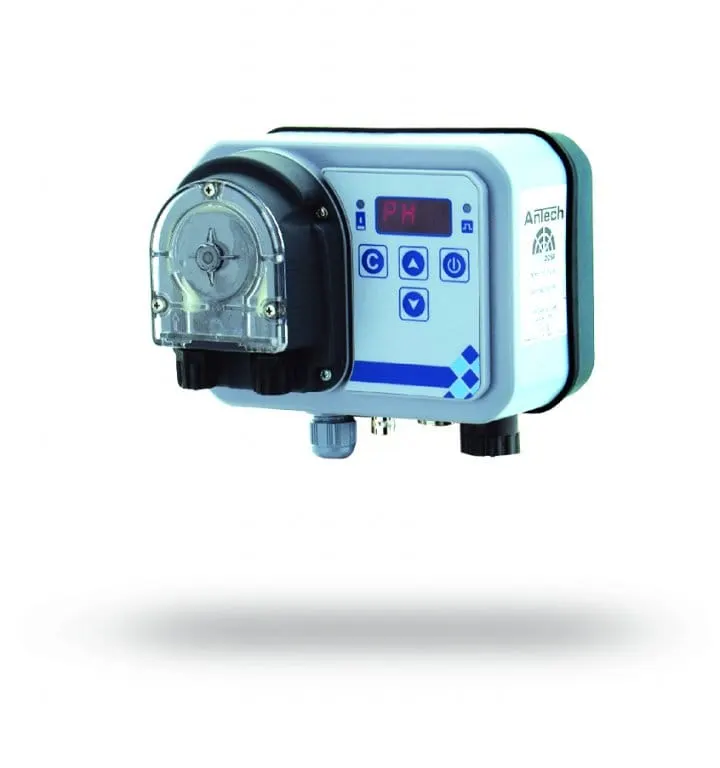

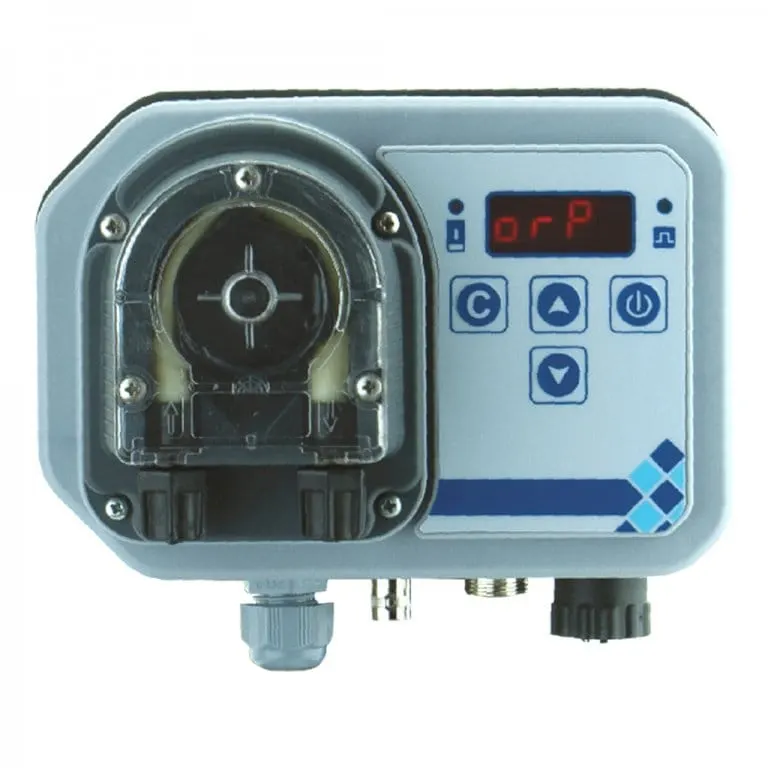

Digital, Level-Controlled, pH & ORP, Volumetric Peristaltic Dosing Pump
• Digital display, microcontroller technology for precise dosing, time setting
, and user password parameters•
Easy-to-navigate menu and user-friendly button technology•
ORP (REDOX) or pH measurement
using standard combination electrodes• Fully digital adjustment and automatic calibration
using buffer solutions• Ability to enter measurement value definition time at startup (0–60 min.)
• Volumetric proportional dosing when connected to a water
meter or flowmeter (Volumetric connection cable not included in the package)
• 4–20 mA analog input, liquid level control alarm relay•
Programmable liquid level or flow control•
Easy and flexible
installation and use

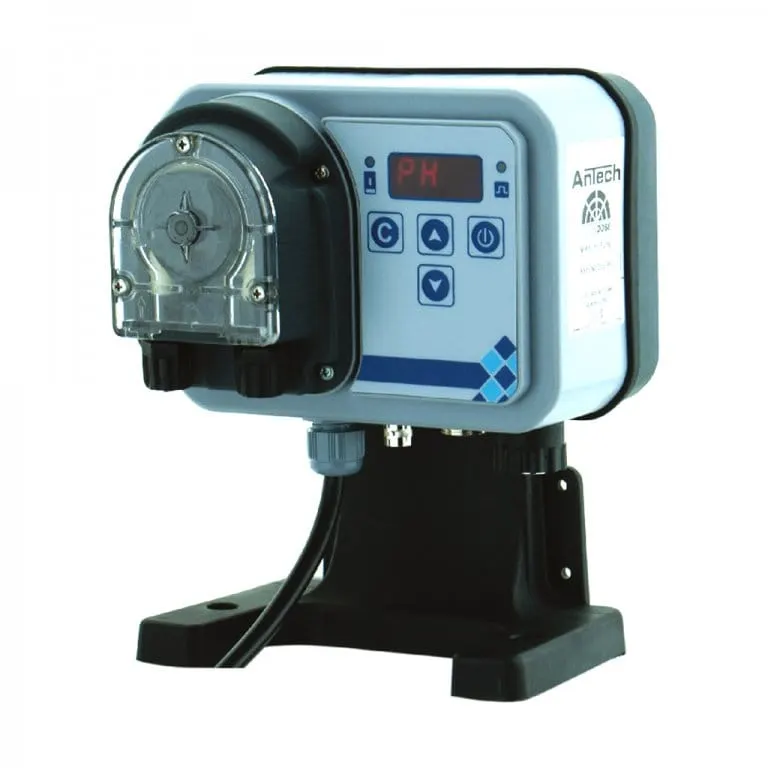

thanks to vertical rail wall mounting or an optional mounting foot• Fully plastic housing
providing high resistance to corrosive chemicals• Ability to monitor pump capacity in ml/h on the display and perform flow
calibration• Easy maintenance and various capacity options thanks to
OEM head options• Includes suction and discharge liquid level sensor accessories
Technical Specifications:
| Model | ASPENDOSE PR |
| Min./L (L/h) | 0.001
0.001 |
| Max. L/h | 4.3
2.5 |
| Max./P (bar) | 0.5
3 |
| Suction Connection (mm) | 4x6
4x7 |
| Discharge Connection (mm) | 4x6
4x7 |
| Supply Voltage (Volts) | AC 100–240 VAC 50–60 Hz
DC 12–28 VDC |
| Watts (W) | AC 6–8 W
DC 12–28 VDC |
| Product Weight (kg) | 0.825 |
| Enclosure (IP) | X5 |
| Max. Temperature (°C) | Ambient: 0–45
For chemicals: 0–45 |
* For pH: Max. 40% H₂SO₄ (Sulfuric Acid) * For CL: Max. 16% NaOCl (Sodium Hypochlorite)
Raw Materials Based on Components Used:
| Code | A |
| OEM Housing | PP |
| Suction-Pressure Assembly | PP |
| Number of Rollers | *3-2 |
| Peristaltic Hose | *Norprene, Silicone |
|
Suction-Pressure-Discharge Hose |
PVC – PE – PVC |
*3 reels for 4.3L/0.5B, 2 reels for 2.
5L/3B.* Norprene for 4.3L/0.5B, silicone for 2.5L/3B.
