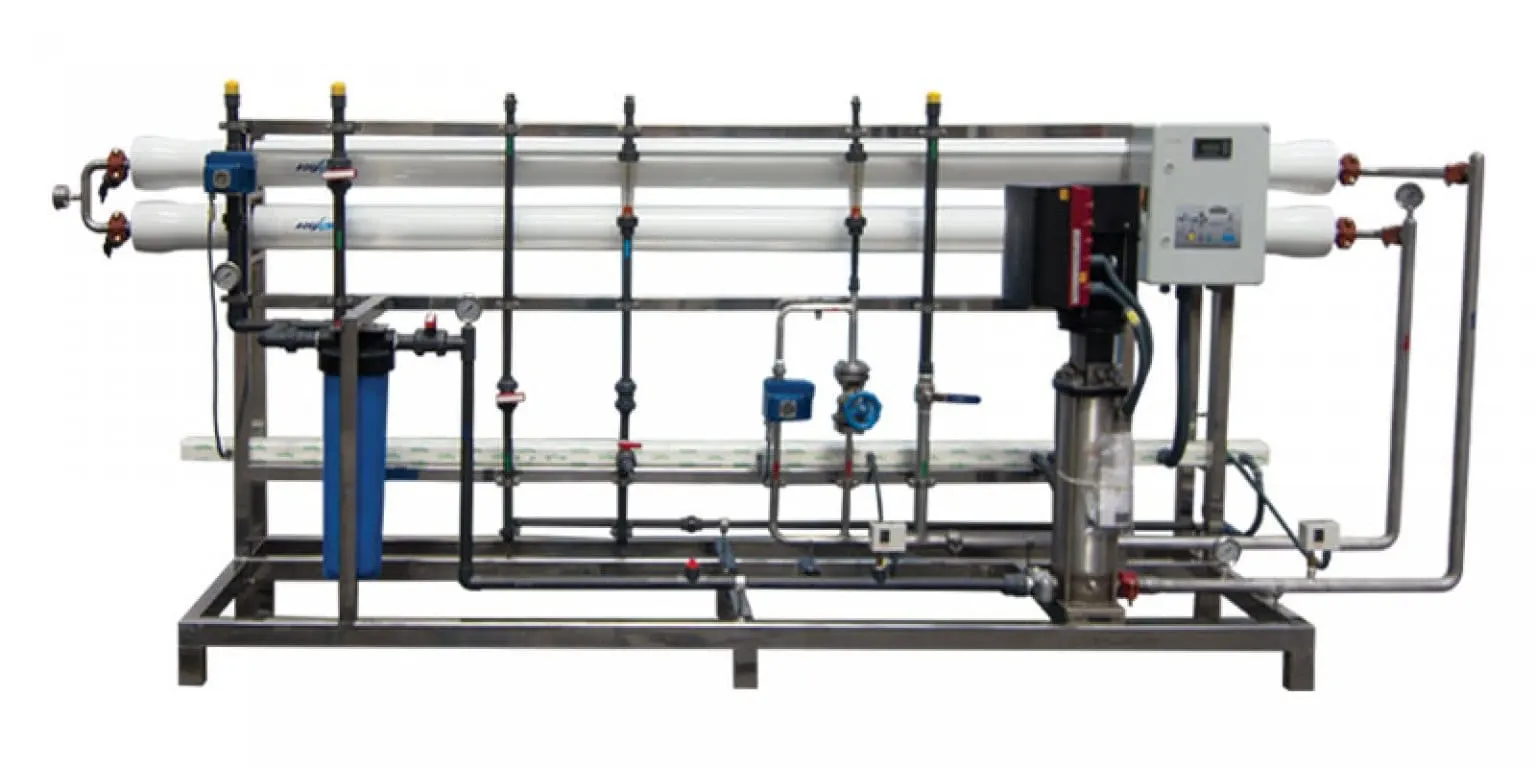

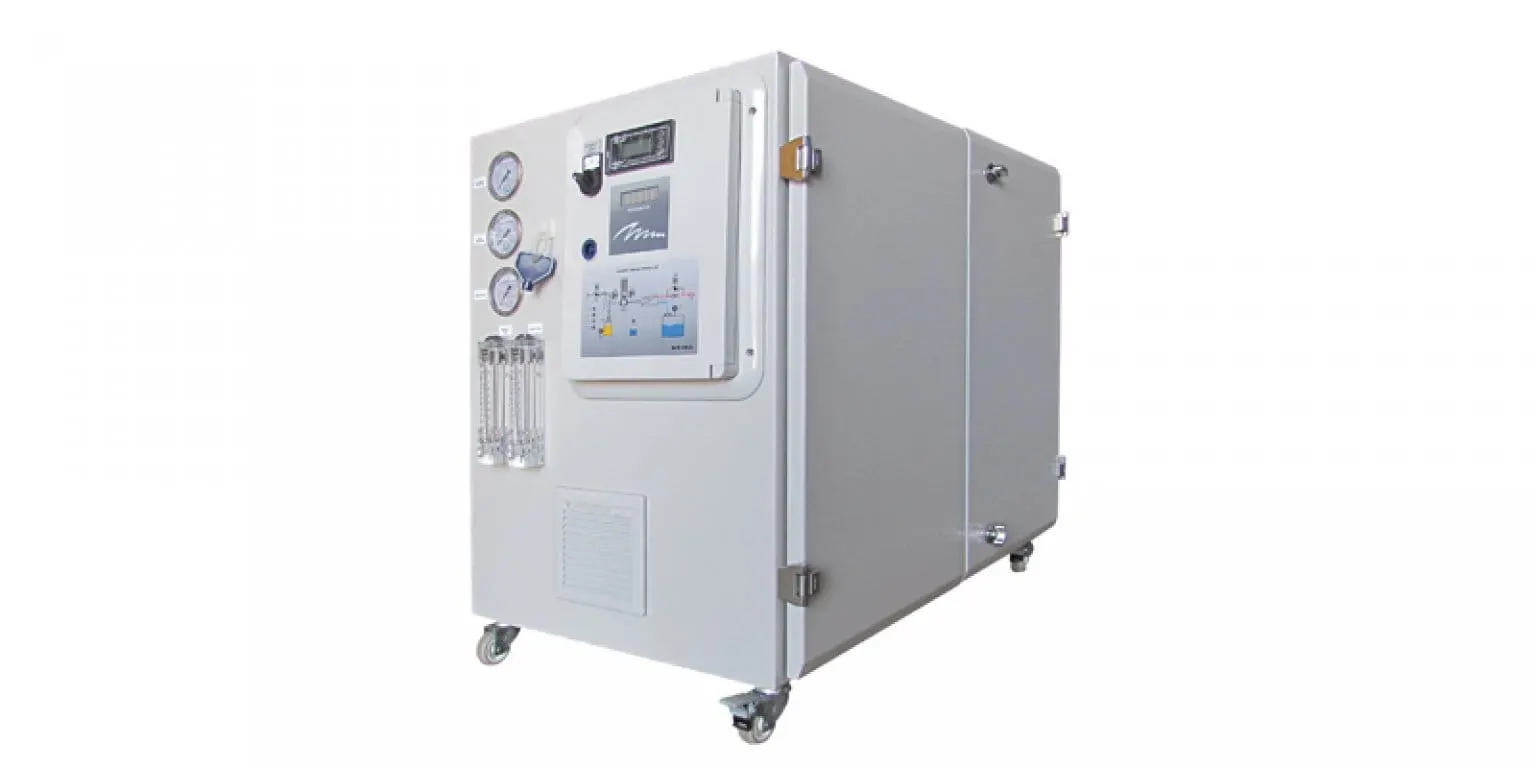

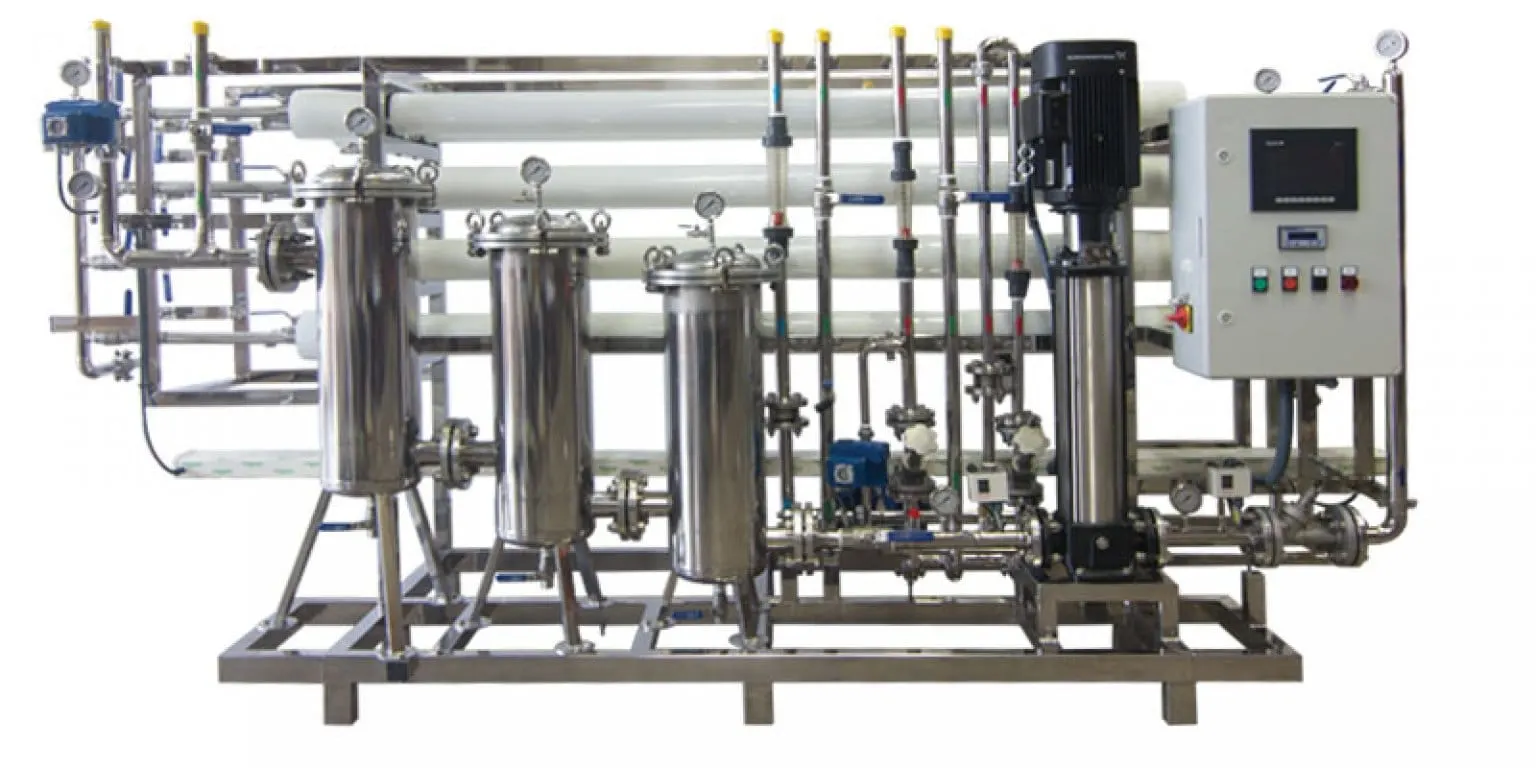

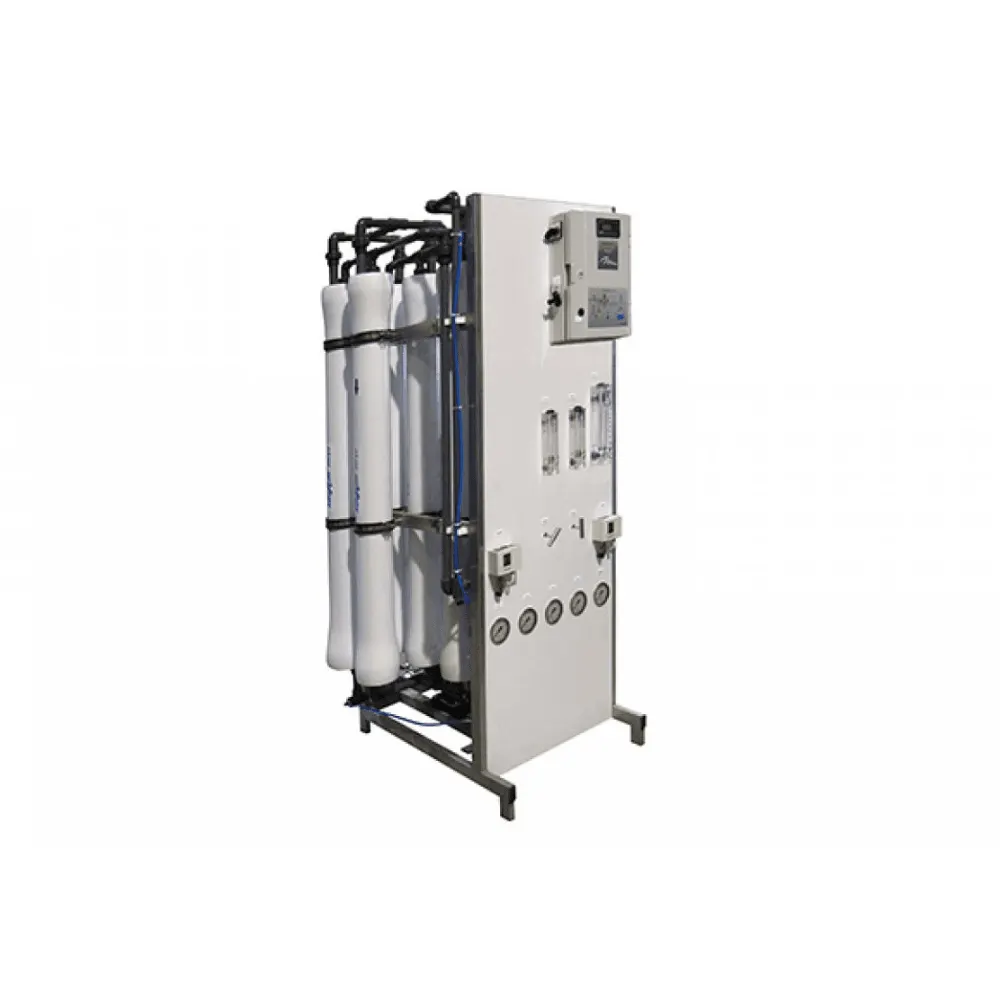

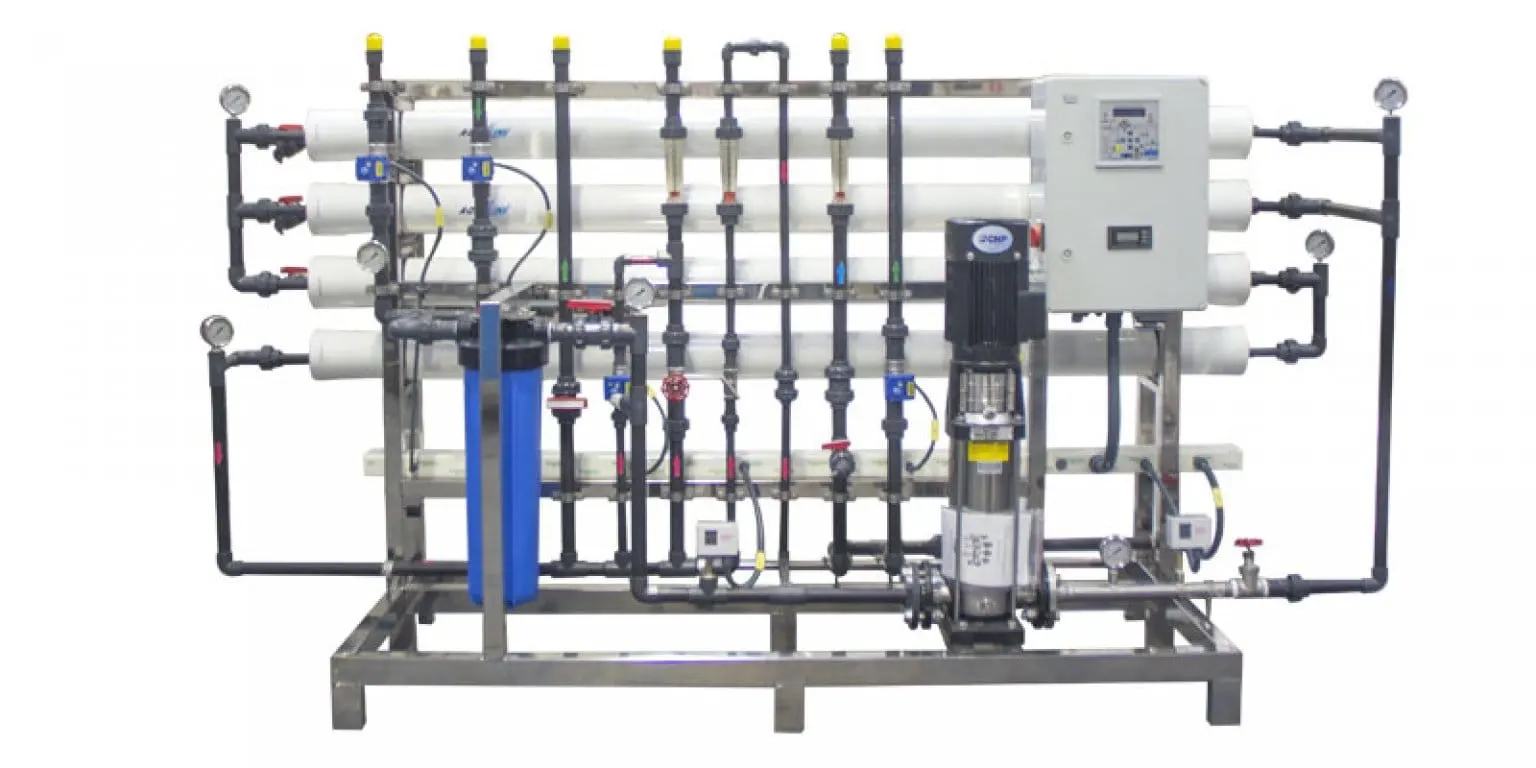

EFBI ALPHA SERIES REVERSE OZMOZING SYSTEMS 1 m3/day - 30 m3/day It is a system that is applied to waters (sea water, waters with high conductivity, well waters, etc.) where classical treatment systems are insufficient..

About the Product

EFBI ALFA SERIES REVERSE OSMOSIS SYSTEMS
1 m³/day – 30 m³/day



Reverse osmosis refers to the membrane filtration process used to remove all unwanted minerals from water—such as seawater, highly conductive water, and well water—where conventional treatment systems fall short, with the aim of producing pure water. Osmosis is a natural phenomenon and, in short, the movement of water from a less concentrated solution to a more concentrated one. This process continues until osmotic equilibrium is achieved. Reverse osmosis, however, is the reversal of this osmotic flow. EFBİ Reverse Osmosis Systems successfully ensure the production of pure water as a result of this process. EFBİ Reverse Osmosis Systems can be manufactured in various designs and configurations according to customer requirements.



STANDARD FEATURES

  • Membrane housings: FRP or stainless steel
  • TFC spiral-wound membranes, 2.5” and 4” diameter
  • AISI 304 grade stainless steel vertical centrifugal high-pressure pump (ALFA 340/440/540/640)
  • Brass-bodied rotary-type high-pressure pump (ALFA125/140/240)
  • AISI 304 grade stainless steel frame
  • 5-micron precision cartridge filter
  • Low and high-pressure pipes made of U-PVC without PN20
  • Inlet solenoid valve
  • Pressure-regulating needle valves on the pump outlet and wastewater line
  • Low and high-pressure switches
  • Clean and wastewater flow meters
  • Recirculation flow meter (Available only for ALFA 340/440/540/640)
  • Glycerin manometers
  • Product water conductivity meter (0-2000 µS/cm)
  • Autoflush system
  • On-Off switch
  • RO electronic control board, alarm and status lights
  • 220 V/50 Hz/1-phase (ALFA 125/140/240)
  • 380 V/50 Hz/3-phase (ALFA 340/440/540/640)
  • IP56 Control Panel



Recommended Inlet Water Limits

  • Inlet water TDS: 0 – 2,000 ppm
  • Operating pressure: 10 to 15 bar
  • Inlet water pressure: 2 to 5 bar
  • If hardness exceeds 3 French units, ASC dosing is required
  • pH range: 6 – 8
  • Silica (SiO₂) tolerance: 25 ppm max. @ 60% efficiency
  • Max. Inlet water temperature = 30°C Max.
  • Max. Iron (Fe) tolerance: 0.05 ppm; 0.2 ppm if ASC is dosed
  • Hydrogen sulfide must not be present.
  • No turbidity (NTU <1)
  • No oil or grease
  • SDI < 5
  • There should be no microbial contamination
