CODE: FRP-002

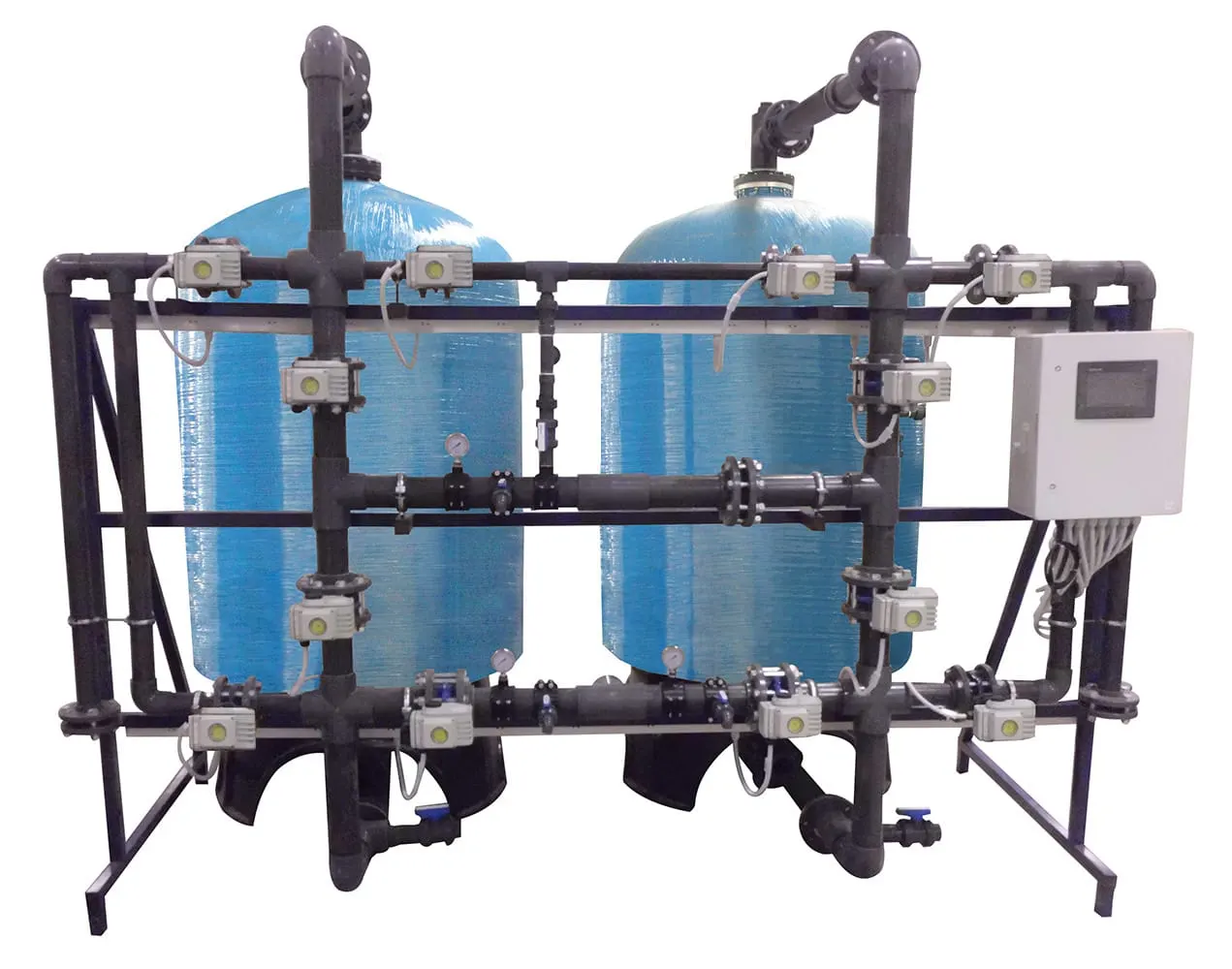

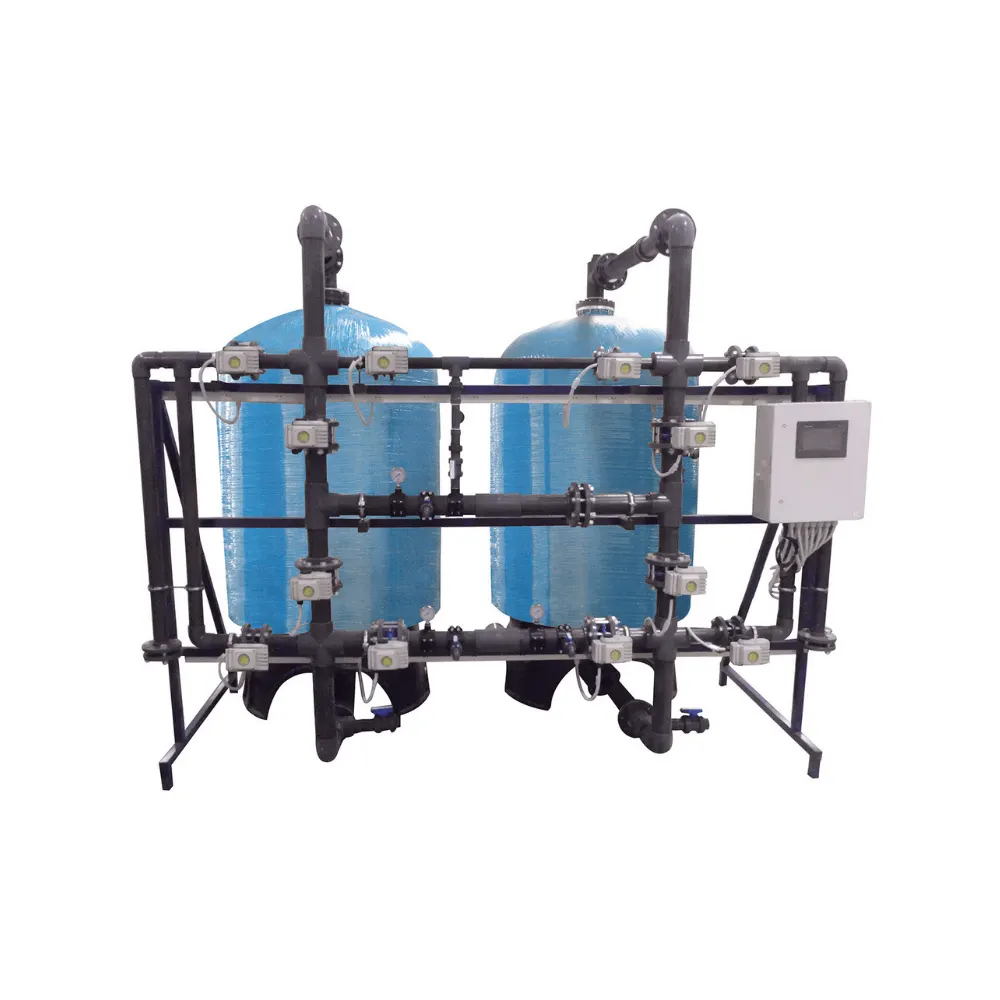

Calcium magnesium ions dissolved in water cause hardness in water. Aqualine water softening systems are systems that remove Calcium (Ca) and Magnesium (Mg) ions in water that cause hardness...
Calcium and magnesium ions present in dissolved form in water cause water hardness. Aqualine water softening systems are designed to remove calcium (Ca) and magnesium (Mg) ions from water, which are the primary causes of hardness. As a result, the softening system eliminates water hardness, softens drinking water, and improves the taste of the water.
Water softening systems automatically perform regeneration processes on the desired day and time of the week without any intervention. The resin, having reached saturation, undergoes regeneration with brine, thereby being cleansed of calcium and magnesium ions.
TECHNICAL SPECIFICATIONS
WCY brand FRP tank
Aqualine brand cationic resin
Maximum operating pressure 6 bar
Pneumatic actuator-operated butterfly valves (Optional electric actuator option)
Octopus diffuser in the lower collection structure
PVC-U piping (on an epoxy-coated frame)
Sample taps and pressure gauges at system inlets and outlets
Siemens Logo PLC-based control panel (Optional touchscreen option)
Electrical: 220V / 50 Hz / 1 pH
Salt consumption of 150 g per 1 liter of resin is assumed
Resin capacity: 6,000 Fr per liter of resin
The customer is responsible for providing the dry instrument air required for the operation of the pneumatic valves. The recommended compressor capacity is a minimum of 100 L/min @ 8 bar
