Electric Powered Chlorination System

CODE: EEK-001

Features : Analog Dosing Pump with On/Off Button - Stroke speed adjustable design with the potentiometer on it - On/Off Button - Easy and flexible thanks to its vertically mounted design..

Request Quote ← All Products

About the Product

Features:

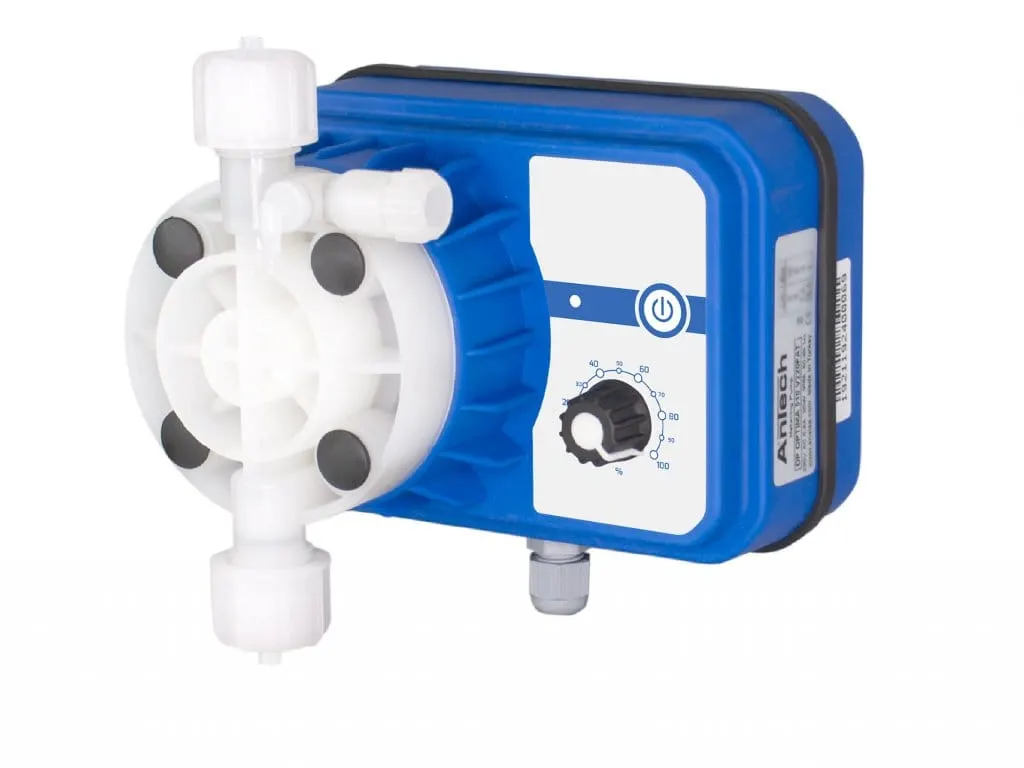

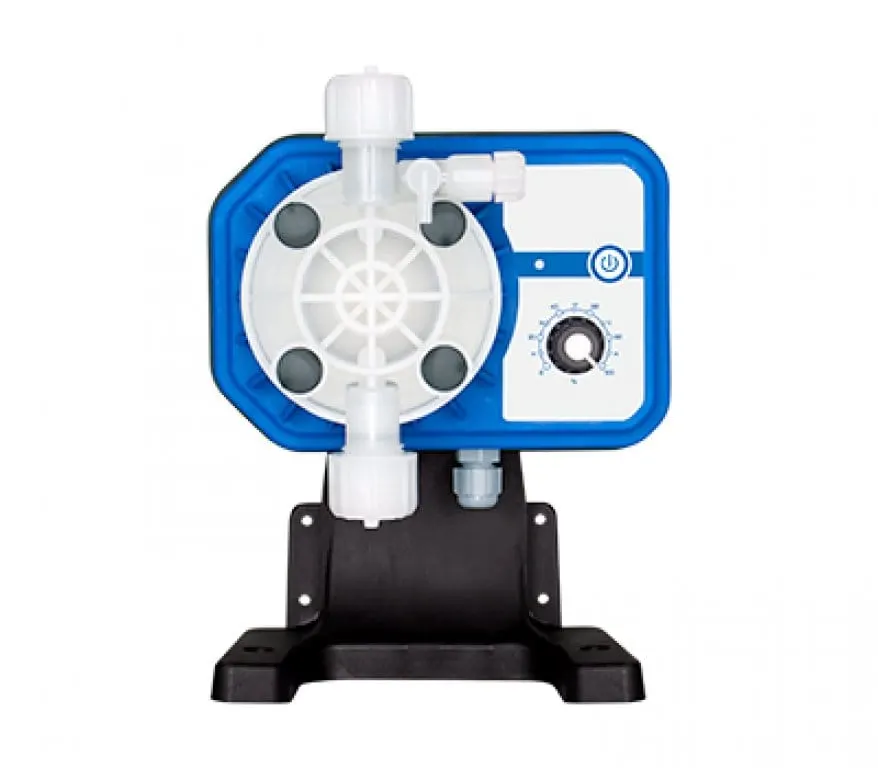

Analog Dosing Pump with On/Off Button

• Design
featuring a potentiometer for adjustable stroke speed• On/Off Button•
Easy and flexible installation and use

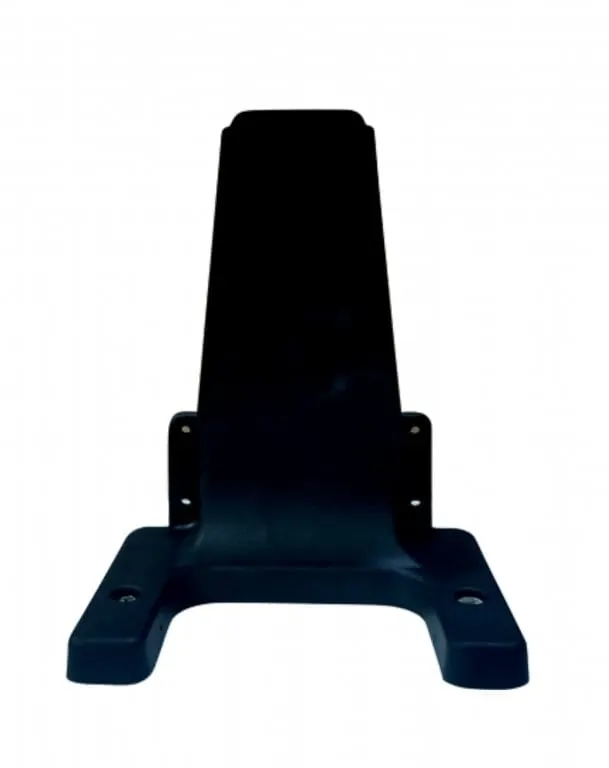

thanks to its vertical mounting design• PVDF head assembly
and fully IP65-rated housing
for high resistance to corrosive chemicals• Electromagnet controlled by an electronic circuit and a long-lasting Teflon (PTFE)
diaphragm• Requires less maintenance
thanks to its zirconium ball design• Includes PP discharge and suction accessories

Technical Specifications:

Model	5L / 10B	2.5L / 15B
Max. Flow Rate (L/h)	5-6-7.5-10	2.5-3-4-8
Max. Pressure (bar)	10-6-3-1	15-10-6-1
Strokes/min (strokes)	120	120
ml/stroke (ml)	0.694 – 0.833 – 1.042 – 1.458	0.278 – 0.333 – 0.444 – 0.889
Suction Connection (mm)	4×6
Discharge Connection (mm)	4×6
Supply Voltage (Volts)	230 VAC 50–60 Hz
Watt (W)	20
Product Weight (kg)	2.16
Enclosure (IP)	65
Max. Temperature (°C)	Ambient: 0-45 Chemical: 0-40

Materials Based on Components Used:

Code	V	E	VPTFE
Pump Head	PVDF	PVDF	PVDF
Suction-Discharge Assembly	PP	PP	PP
O-Rings	Viton	EPDM	PTFE
Pressure Hose	PE	PE	PE
Suction-Vent Hose	PVC	PVC	PVC
Air Intake Outlet	Manual	Manual	Manual
